Description

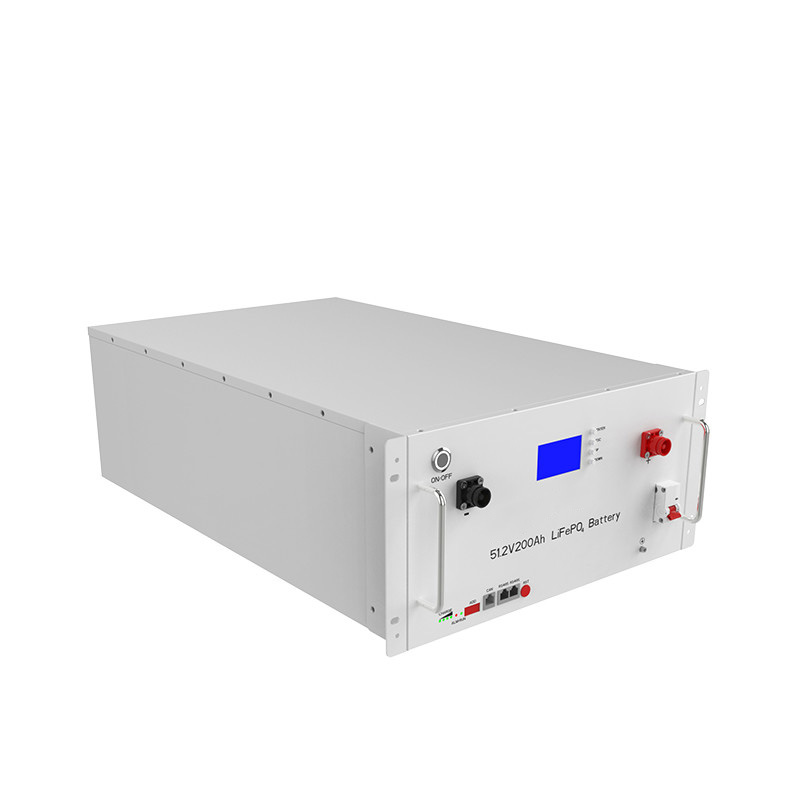

| Item | LISUN-48-200 | Remark |
| Combination Method | 16S2P | |
| Rated Capacity | 200Ah | Standard discharge after Standard
charge（package) |
| Factory Voltage | 51.2V | Mean Operation Voltage |
| Voltage at end of Discharge | 46V | Discharge Cut-off Voltage |
| Charge Voltage | 56V | Charge Cut-off Voltage |
| Internal Impedance | ≤55.0mΩ | Internal resistance measured at AC
1KHZ after 50% chargeThe measure must uses the new batteries that within one week after shipment and cycles less than 5 times |
| Standard charge | Constant Current 50A
Constant Voltage see No.5 0.02CA cut-off |
Charge time : Approx 2.5 h |
| Maximum Continuous Charge Current | 100A | |
| Standard Discharge | Constant current：50Aend voltage see NO.4 | |
| Maximum Continuous Discharge Current | 100A | 100A when 0ºC＞T≥-20ºC |
| Operation Temperature Range | Charge: 0~45℃ | 60±25%R.H.
Bare Cell |
| Discharge: -20~55℃ | ||
| Storage Temperature Range | Less than 12 months : -10~35℃ | 60±25%R.H.
at the shipment state |
| Less than 3 months: -10~45℃ | ||
| Less than 7 day : -20~65℃ | ||
| Dimensions | 720*480*222.2mm | Include Bracket |
| Weight | Approx ：102.5 kg | |
| BMS Port | CANBUS/RS485 | |

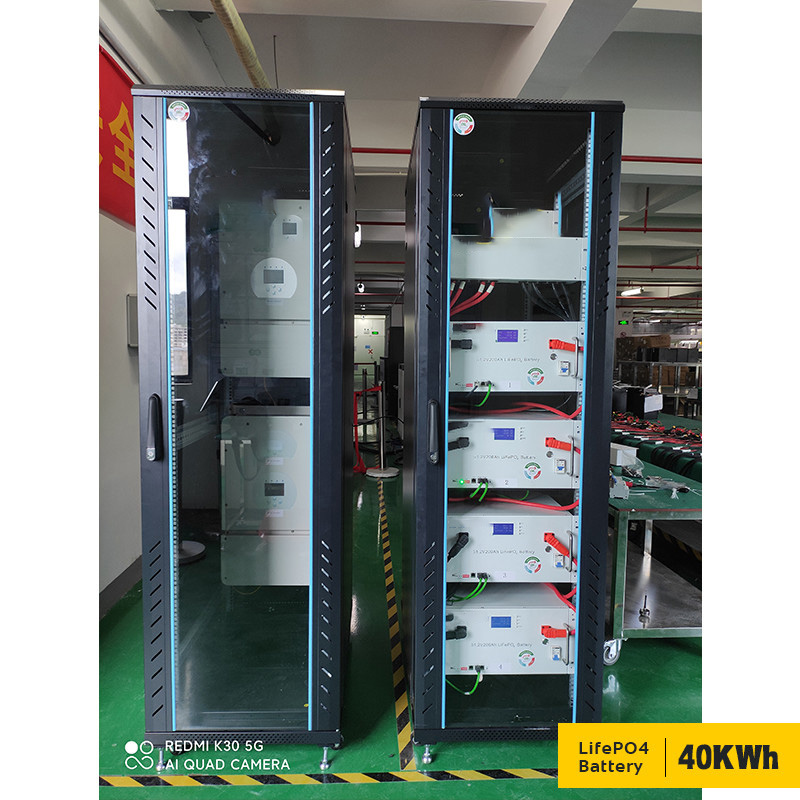

| BMS Support | 16PCS Parallel connection | 160KWH at max |
Product Performance
Vertical industry integration ensures more than 6500 cycles with 90% DoD.
Compact and fashionable design fits in your sweet home environment.
Modular design gives the end customers the power of choice of capacity.
Compatible with most of the available Hybrid inverters.
Simple buckle fixing minimize the installation time and cost.
Safety Cert.TüV CE UN38.3 IEC.
PRODUCT ADVANTAGE
Energy Storage
–Solar-Wind Power System / City Grid (On/Off) / Community and Family
Back-up System and UPS
–Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
Other Applications
–Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
–RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
–LED Backup / Engine Starting Battery,etc.
Manufacture Technology
SUPER SAFETY TEST
Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.
