LISUN 51.2v 100ah 5000w 3U Lifepo4 Battery Solar Energy Storage System 5 Kw Lithium Battery Bank

Battery Data

Nominal Voltage

51.2V

Voltage Range

45V-57.6V

Capacity

5.12kwh

Cont Charge Current

20A

Cont Discharge Current

50A

MAX Discharge Current

100A

Battery Type

LFP

General Date

Charging Temperature

0 °C to 55°C

Storage Temperature

-15 °C to 60 °C

Humidity

5%-95%

Cooling strategy

Free Cooling

Weight (lbs./kg)

38kg

Dimensions (in./mm)

442*470*133mm

Packing

DG Box

IP Class

IP20

Communication

RS485/CAN

Warranty

5 Years

Cycle life

6000 cycles

Enquiry

Description

PRODUCT PARAMETER

LISUN ENERGY

Products type	MODEL : LISUN-US2000B	Battery pack Discharge Current (Max.)	150A
Cell Technology	Lifepo4	Efficiency	98%
Battery Pack Capacity (Wh)	2560	Depth of Discharge	100%
Battery pack Voltage (Vdc)	48	Dimension (LWH, mm)	442385132
Battery pack Capacity (AH)	50	Communication	Option of CANBUS OR RS485, SMbus
Battery pack Cell Quantity in Series (pcs)	15S	Protection Class	IP54
Battery pack Charge Voltage (Vdc)	58.4	Weight	24.5KG
Battery System Charge Current (Standard)	10A	Operation Life	10+ years
Battery pack Charge Current (Normal)	20A	Operation Cycle Life	Over 4000 times
Battery pack Charge Current (Max.)	50A	Operation Temperature	0-50℃
Battery pack Discharge lower-Voltage (Vdc)	46V	Storage Temperature	minus 20 — 60 ℃
Battery System Discharge Current (Standard)	20A	Products certificates	TÜV (IEC62619), CE
Battery pack Discharge Current (Normal)	50A	Transfer Certificates	UN38.3 , MSDS

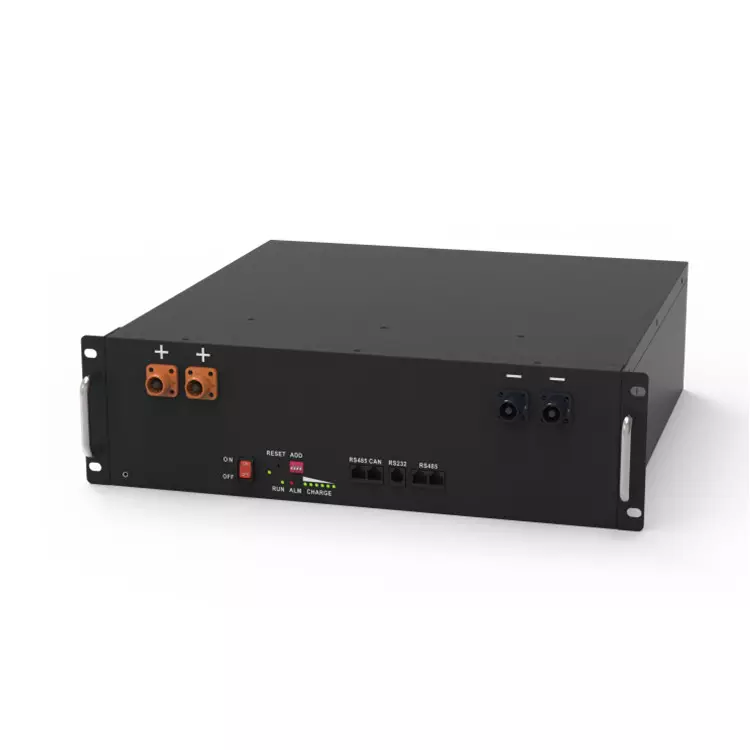

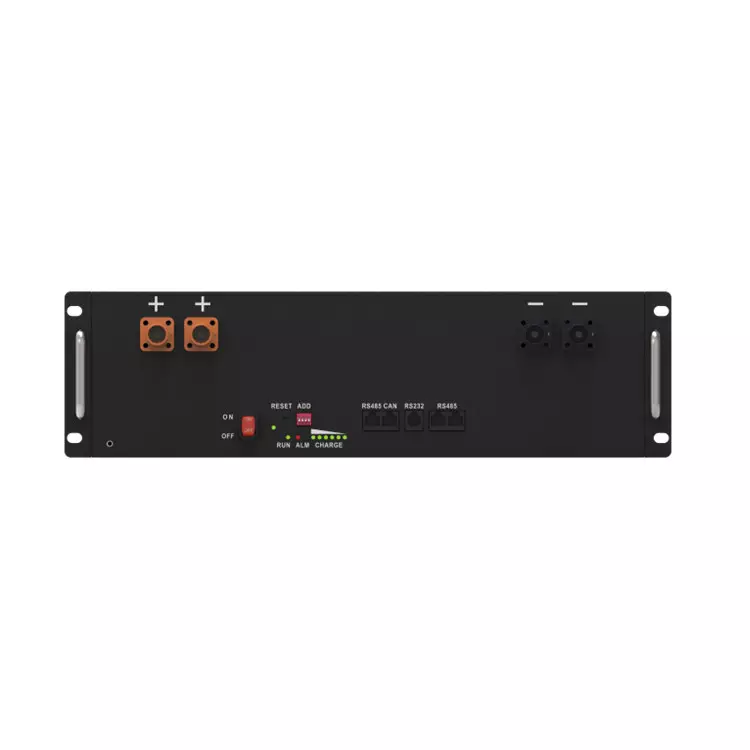

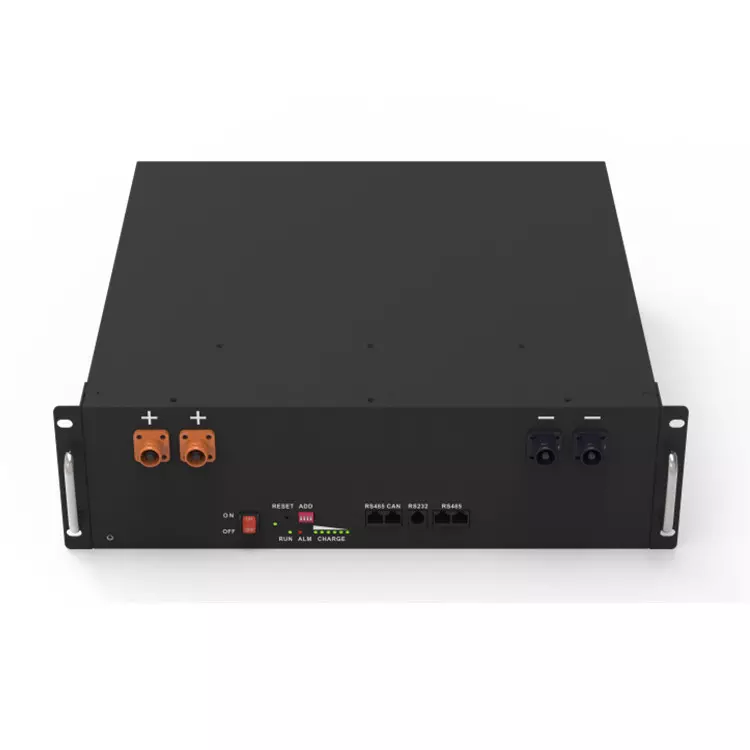

PRODUCTS DISPLAY
